Isolatiebewaking

Isolatiebewakingstoestellen voor alle IT-systemen. Voor toepassing in de industrie, energieopwekking, scheepvaart, offshore, gebouw- en verkeerstechniek

ISOMETER® IR125Y-4

The A-ISOMETERs® of the IR125Y series are designed to monitor the insulation resistance of unearthed AC and DC control circuits (IT systems). External supply voltage is not required.In contrast to insulation monitoring device which evaluate the shift voltage for insulation fault detection, this series uses the active AMP measuring principle. This creates the possibility to detect and lees meer...

Downloads

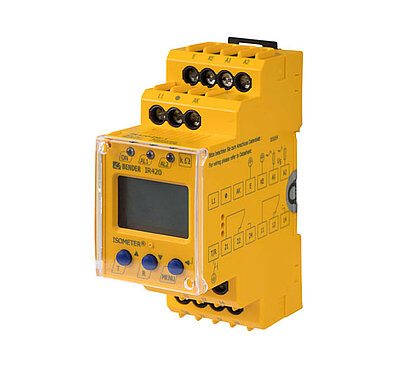

ISOMETER® IR420-D4

The A-ISOMETER® of the IR420 series is designed to monitor the insulation resistance of AC control circuits (IT systems) 0…300 V. If the systems to be monitored include DC components, such as switched-mode power supplies or solenoid valves, the display and operating characteristics may be affected. The display and response values apply to pure AC systems.An external supply voltage allows de- lees meer...

Downloads

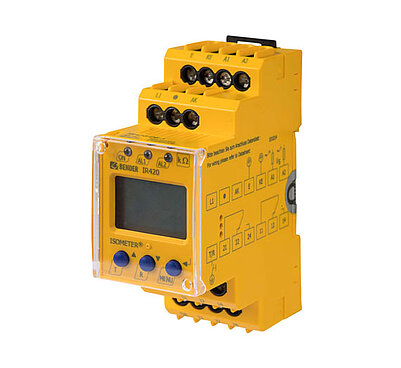

ISOMETER® IR420-D6

The offline monitor of the IR420-D6 series is designed to monitor the insulation resistance of loads in the de-energized state. These loads, usually temporarily operated or de-energized most of the time, e.g. fire extinguisher pumps, slide valve drives etc are supplied from TN, TT or IT systems. During the shut-down periods, hohwever, humidity or other effects may cause insulation faults in the lees meer...

Downloads

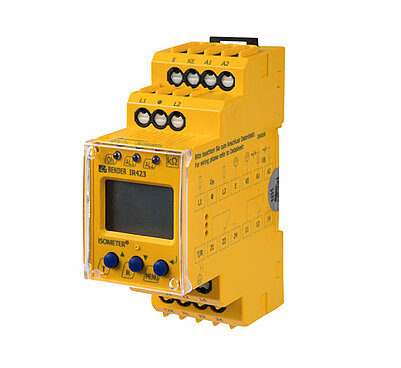

ISOMETER® IR423

The ISOMETER® of the IR423 series is designed to monitor the insulation resistance RF of an unearthed AC system of 0…300 V to earth that is supplied by a mobile generator according to IEC 60364-5-551 / DIN VDE 0100-551 (VDE 0100-551). The IR423 is suitable for AC systems with operating frequencies ≥ 30 Hz as well as for AC systems with directly connected DC circuits. The maximum permissible lees meer...

Downloads

ISOMETER® IR123P

Insulation monitoring device for mobile generators lees meer...

Downloads

Datablad (EN)

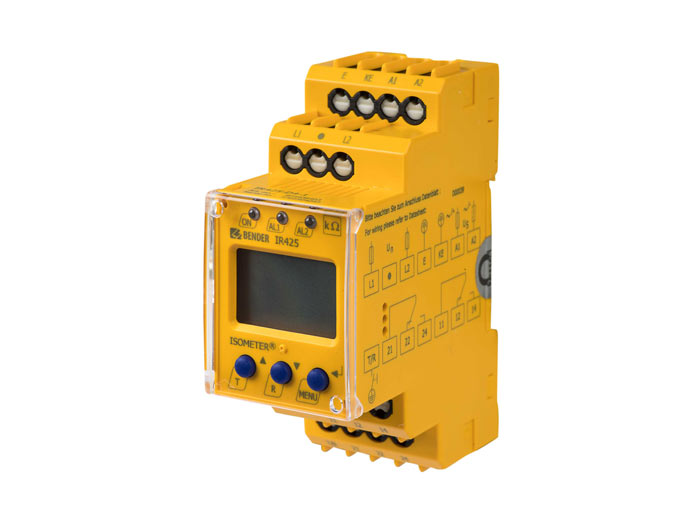

ISOMETER® IR425

The ISOMETER® of the IR425 series is designed to monitor the insulation resistance of unearthed AC/DC control circuits (IT systems) 0…300 V. DC components existing in AC/DC systems do not influence the operating characteristics. An external supply voltage allows de-energized systems to be monitored too. lees meer...

Downloads

ISOMETER® IR470LY

The ISOMETER® of the IR470LY series is designed to monitor the insulation resistance of unearthed AC and three-phase systems (IT systems) AC/3(N)AC 0…793 V. In combination with a coupling device, the Isometers can also be used for higher voltages. An external supply voltage allows de-energized systems to be monitored too.The systems to be monitored should not contain DC components. Due to the lees meer...

Downloads

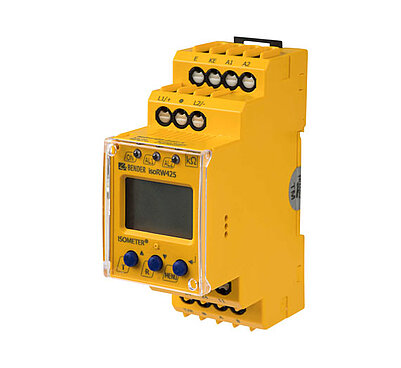

ISOMETER® isoRW425

The ISOMETER® isoRW425 monitors the insulation resistance of unearthed AC, AC/DC and DC Systems (IT systems) for railway applications up to AC/DC 0…400 V. DC components existing in AC/DC systems do not influence the operating characteristics. An external supply voltage allows de-energised systems to be monitored too. lees meer...

Downloads

ISOMETER® IRDH275

The ISOMETER® of the IRDH275 series is designed to monitor the insulation resistance of unearthed main circuits (IT systems) AC, AC / DC 0…793 V resp. DC 0…650 V. The AMPPlus measuring principle meets the particular requirements of modern power supplies which often include rectifiers, converters, thyristor-controlled DC drives and directly connected DC components. In these systems often high lees meer...

Downloads

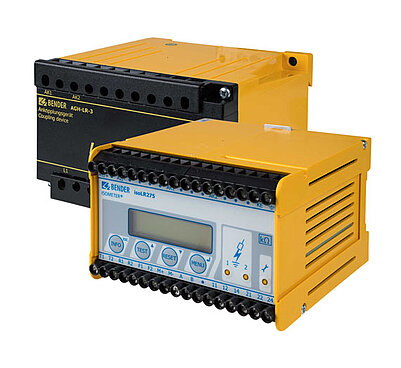

ISOMETER® isoLR275 with AGH-LR

The isoLR275 ISOMETER® in conjunction with the AGH-LR coupling device monitors the insulation resistance of IT systems. It is suitable for universal use in 3(N) AC, AC/DC and DC systems. AC systems may include extensive DC-supplied loads, such as converters or thyristor-controlled DC drives. The adaptation to the existing system leakage capacitances takes place automatically.Only use the AGH-LR lees meer...

Downloads

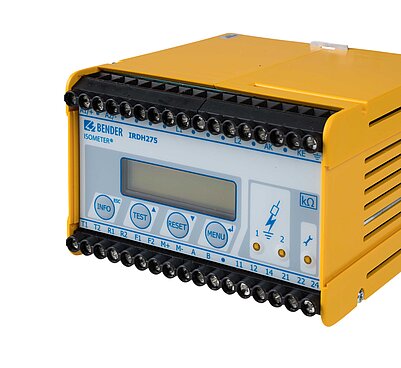

ISOMETER® IRDH275BM-7 with AGH675S-7/AGH675S-7MV15

The device combination ISOMETER® IRDH275BM-7 and the coupling device AGH675S-7 or the coupling devices AGH675S-7MV15 is designed to monitor the insulation resistance of unearthed medium voltage systems (IT systems). It is suitable for universal use in 3AC, combined AC/DC and DC systems. AC systems may include extensive DC-supplied loads. The AMPPlus measurement method meets the particular lees meer...

Downloads

ISOMETER® IRDH375

The ISOMETER® of the IRDH375(B) series is designed to monitor the insulation resistance of unearthed main circuits (IT systems) AC, AC/DC 0…793 V resp. DC 0…650 V. The AMPPlus measuring principle meets the particular requirements of modern power supplies which often include rectifiers, converters, thyristor-controlled DC drives and directly connected DC components. In these systems often high lees meer...

Downloads

The isoHV525 ISOMETER® monitors the insulation resistance of unearthed AC, AC/DC and DC systems (IT systems) with nominal system voltages of 3(N)AC, AC/DC 0 … 1000 V or DC 0 …1000 V. The maximum permissible system leakage capacitance Ce is 150 μF. DC components existing in AC systems do not influence the operating characteristics, when a minimum load current of DC 100 mA flows. A separate supply lees meer...

Downloads

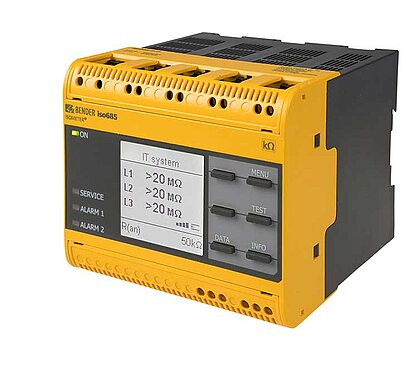

ISOMETER® iso685

The ISOMETER® iso685-… is an insulation monitoring device for IT systems in accordance with IEC 61557-8. It is universally applicable in AC, 3(N)AC, AC/DC and DC systems.AC systems may include extensive DC-supplied loads (such as rectifiers, inverters, variablespeed drives).Device variantsiso685-DThe device version iso685-D features a high-resolution graphic LC display and controlelements for lees meer...

Downloads

ISOMETER® iso685-…-P

The ISOMETER® is an insulation monitoring device for IT systems in accordance with IEC 61557-8 and IEC 61557-9. It is universally applicable in AC, 3(N)AC, AC/DC and DC systems. AC systems may include extensive DC-supplied loads (such as rectifiers, inverters, variablespeed drives).In combination with the insulation fault locators of the EDS44x series or the appropriate measuring current lees meer...

Downloads

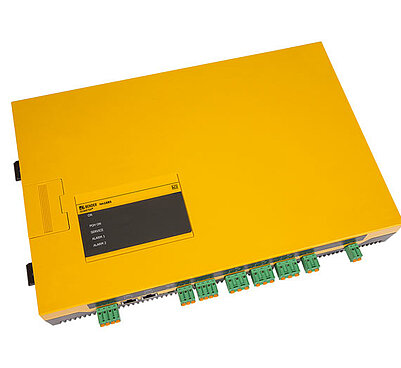

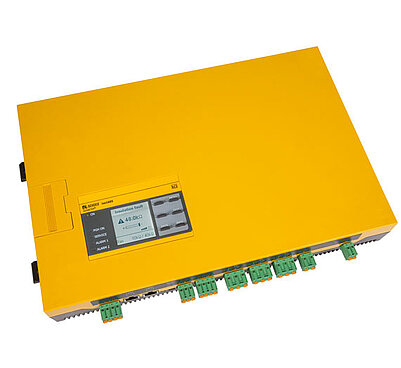

iso1685FR / iso1685FRM

The ISOMETER® iso1685FR… is an insulation monitoring device for IT systems in accordance with IEC 61557-8. It is applicable for use in AC systems.Particularities of the ISOMETER® iso1685FRMThe only difference between the ISOMETER® iso1685FRM and the ISOMETER® iso1685FR is the following: By means of the Modbus-analogue converter M-7024, the ISOMETER® iso1685FRM provides an analogue output. lees meer...

Downloads

Datablad (EN)

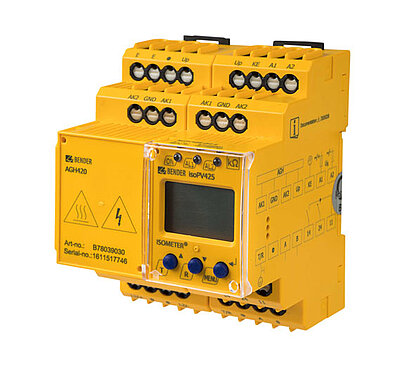

ISOMETER® isoPV425 with AGH420

The ISOMETER® of the isoPV425* series monitors the insulation resistance of unearthed AC/DC main circuits (IT systems) AC, AC/DC 0…690 V resp. DC 0…1000 V.DC components existing in AC/DC systems do not influence the operating characteristics. An external supply voltage allows de-energised systems to be monitored too. lees meer...

Downloads

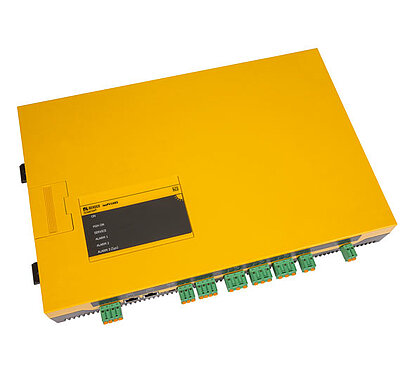

ISOMETER® isoPV1685-1685PFR

The device is used for insulation and residual current monitoring of large photovoltaic systems up to 1500 V designed as IT systems. The measurement method specially developed for slow voltage fluctuations (MPP-Tracking) monitors the insulation resistance even in systems equipped with large solar generator panels where extremely high system leakage capacitances against earth exist due to lees meer...

Downloads

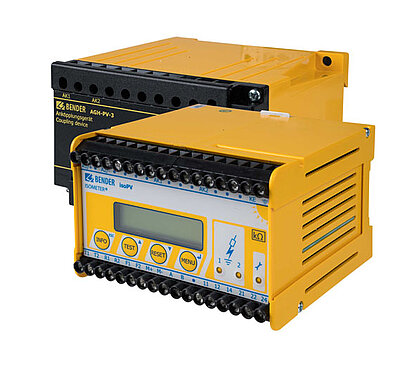

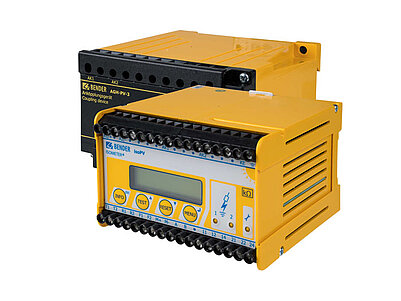

ISOMETER® isoPV with AGH-PV

The ISOMETER® of the isoPV series is designed to monitor the insulation resistance of unearthed main circuits (IT systems) AC, AC/DC 0…793 V resp. DC 0…1100 V. Solar systems containing inverters and isolating transformers are often designed as IT systems. iso-PV variants using the AMPPlus measurement method capable of adapting to slow voltage fluctuations meet the particular requirements of lees meer...

Downloads
